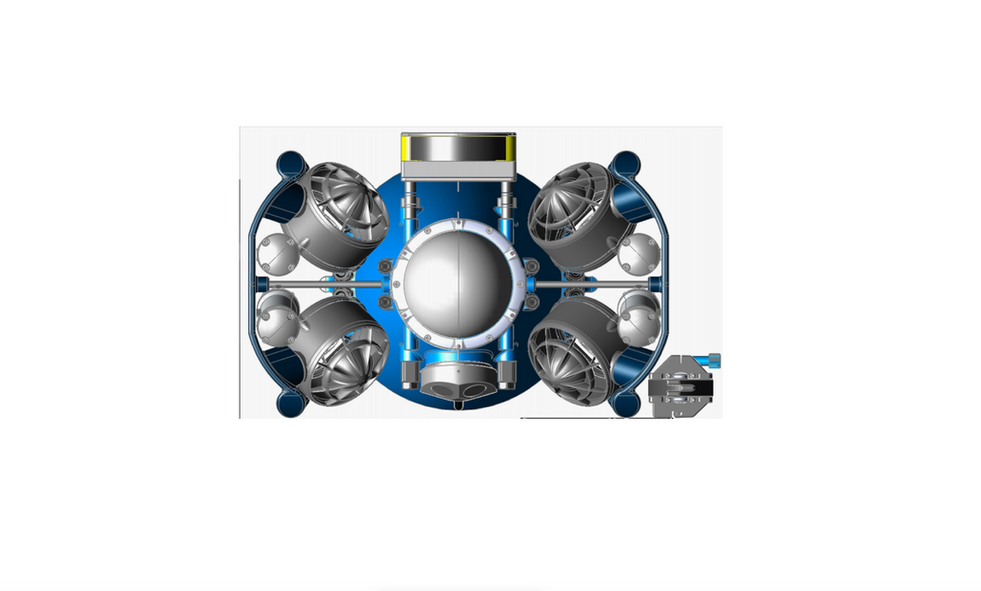

Octi-Max

Available for depths between 300 metres to 800 metres and chose between T200 or T500 thrusters.

Features

Exceptional Flexibility

  • 8 Vectored Thrusters unparalleled maneuverability continues to operate in currents too strong for any other ROV on the market.

  • Depth 300m to 800m The option to increase hull thickness from 4mm to 10 mm can give an increased depth of up to 800 metres.

  • 2 Lithium Polymer 14.8V 10Ah Batteries can be swapped without opening ROV.  Batteries can be carried on commercial airline flights in most parts of the world

  • Standard Payload 4.1kg.  10mm thick hull has a payload of 1.8kg

  • Multiple Anchor points for various tools and penetrator ports for tool control or sensors front and rear of body.

  • Weight 11kg incl Batteries

  • Length 665mm

  • Width 365mm

  • Depth233mm

Optional Extras

Orphie Camera

This design has been optimised to carry larger cameras carried internally and integrated into the electronics and in particular the highly advanced Orphie camera providing exceptional imagery in the most turbid conditions. A second camera is used for navigational purposes.

The capacity to have this camera inside the ROV body provides many considerable advantages over any ROV with the camera external to the body, from far better all round performance, especially in adverse conditions, to lower power consumption from reduced drag.

Waterlinked DVL A50

An interface port for small DVLs has been machined in to the body of the ROV and positioned to minimize drag and interference with any other sensors or tools that maybe added.

Thrusters

Blue Robotics T200 thrusters are standard and M200s inside Delrin (POM) housings are an option.  Replace T200s for T500 for greater power and thrust.

Hydro-Dynamic  Design
Chose your Depth
300m to 800m

24/7 Support
During your First
Months Use

Open Source Functionality
Multiple Anchor Points and Penetrator Ports

Twin Batteries - 3 Hrs
Swap Batteries without
Opening ROV

Internal Camera
Optimised Design to Carry Larger HIgh-Spec Cameras like Orphie

Chose your Thrusters
Octi-Max 200 - 8 T200
Octi-Max 500 - 8 T500

Octi-Max
Maximum Performance - Minimal Price

VIEW IN SHOP
